The smart combination that combines hardness and strength for occlusal splints
Voxelprint Splint Tough is a photopolymerizable, biocompatible resin, specially designed for creating occlusal splints via additive manufacturing (3D printing).
Anti-fracture strength
Clear
High efficiency
Multi-compatible

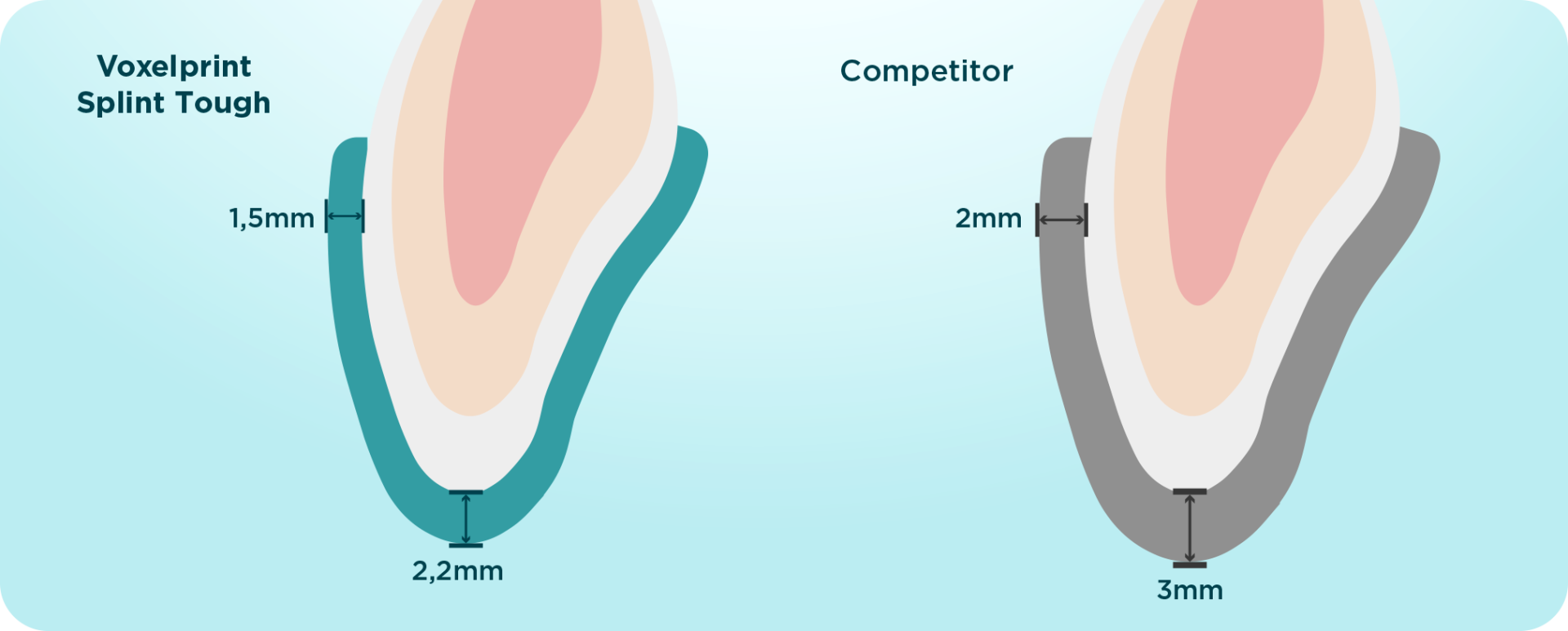

Reduced thickness + Comfort
Due to the superior mechanical properties of the material, it is possible to reduce thicknesses of the occlusal plate, offering greater comfort to the patient. In addition, it ensures greater durability approximately 10% higher compared to those of competitors.
Indications for use
Manufacture of occlusal plates for dental protection in patients with parafunction (bruxism, tightening).
Author: Prof. Dr. Marcelo Giordani
Introduction
Product details
High Strength
Occlusal plates made with Voxelprint Splint Tough resin have high anti-fracture strength, ensuring prolonged durability.
Maximum stress intensity factor (Kmax)
A test that measures the resistance of the material to the propagation of cracks when subjected to a load.
Source: Internal tests according to ISO 20795-2 : 2013.
Total fracture work (Wf)
A test that measures the energy absorbed until complete rupture, obtained by measuring the area under the force versus the deflection curve through a mechanical test, indicating the toughness of the material.
Source: Internal tests according to ISO 20795-2 : 2013.
Clinical Benefits
In practice, the results demonstrate characteristics of the material’s ability to resist fracture in patients with parafunction (bruxism and tightening).
Watch the video and see the results:
Play Video
Ideal Hardness
Voxelprint Splint Tought has adequate and compatible hardness for occlusal plates, ensuring wear resistance and material integrity against occlusal forces.
Shore D hardness
A test that evaluates the resistance to penetration for polymeric materials.
Source: Internal tests according to ASTM D2240-2015.
Testimonials
“Voxelprint Splint Tough proved easy to work with, showing excellent printing consistency. It faithfully reproduced a previously designed bruxism splint. I believe it’s an excellent option for clinicians using printed splints in their routine.”
Prof. Dr. Luis Fernando Bessel
Clinical Case
Prof. Dr. Marcelo Giordani
Printing parameters
Select the Printer Brand
FlashForge Hunter
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec)
| 4,4 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | 100
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm)
| 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec)
| 4,6 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | 100
|
X Size Adjustment (%)
| 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | 100
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 10,1 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
dOne One
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,2 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%)
| – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,3 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,4 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 7,2 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
FlashForge Foto 8.9S
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 30 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5 |
Adhesion Time (sec) | 30 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,2 |
Adhesion Time (sec) | 30 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 11 |
Adhesion Time (sec)
| 40 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
FlashForge Foto 6.0
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 35 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4 |
Adhesion Time (sec) | 35 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,2 |
Adhesion Time (sec) | 35 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,9 |
Adhesion Time (sec)
| 45 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
FlashForge Focus 6K Ultra
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | – |
Adhesion Time (sec) | – |
Transition Layers | – |
Light Intensity (%) | – |
X Size Adjustment (%)
| – |
Y Size Adjustment (%) | – |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | – |
Adhesion Time (sec) | – |
Transition Layers | – |
Light Intensity (%) | – |
X Size Adjustment (%) | – |
Y Size Adjustment (%) | – |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Especificação | Valor |
|---|---|
Altura de Camada (mm) | 0,1 |
Tempo de Cura (seg)
| – |
Tempo de Aderência (seg)
| – |
Camadas de Transição
| – |
Intensidade de Luz (%)
| – |
Ajuste de Tamanho em X (%)
| – |
Ajuste de Tamanho em Y (%)
| – |
Compensação Externa (mm)
| 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon D2 - DLP
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,2 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,4 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | 100
|
X Size Adjustment (%)
| 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono 2
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec)
| 5,0 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,2 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%)
| – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 11,6 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,0 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,2 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 11,6 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono 4K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,0 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono S
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,4 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 6,0 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 12,7 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono SE
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 6
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,4 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,9 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 12,5 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
M7 Pro
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,3 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,9 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono M5s
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,9 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 10,3 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono X 6K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,3 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,9 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Sonic Mini 8K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec)
| 4,2 |
Adhesion Time (sec) | 25
|
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 63 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Sonic 4K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,7 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,9 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 6 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Sonic Mini 2K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100 |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | – |
Adhesion Time (sec) | –
|
Transition Layers | – |
Light Intensity (%) | – |
X Size Adjustment (%) | –
|
Y Size Adjustment (%) | –
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,7 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,9 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 6 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Sonic Mini 4K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100 |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | – |
Adhesion Time (sec) | –
|
Transition Layers | – |
Light Intensity (%) | – |
X Size Adjustment (%) | –
|
Y Size Adjustment (%) | –
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,7 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 939 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 6 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Sonic Mini 8KS
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,0 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100 |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,2 |
Adhesion Time (sec) | 25
|
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100 |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 6 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Halot
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 25
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%)
| 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,4 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
lab LD002H
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,3 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,5 |
Adhesion Time (sec) | 25
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Especificação | Valor |
|---|---|
Altura de Camada (mm) | 0,1 |
Tempo de Cura (seg)
| 3,6 |
Tempo de Aderência (seg)
| 25 |
Camadas de Transição
| 8 |
Intensidade de Luz (%)
| – |
Ajuste de Tamanho em X (%)
| 100
|
Ajuste de Tamanho em Y (%)
| 100
|
Compensação Externa (mm)
| 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 7,6 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Halot Mage Pro
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 2,0 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 2,5 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Especificação | Valor |
|---|---|
Altura de Camada (mm) | 0,1 |
Tempo de Cura (seg)
| 3,2 |
Tempo de Aderência (seg)
| 20 |
Camadas de Transição
| 8 |
Intensidade de Luz (%)
| – |
Ajuste de Tamanho em X (%)
| 100
|
Ajuste de Tamanho em Y (%)
| 100
|
Compensação Externa (mm)
| 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 6,8 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Halot mage s 14k
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 2,0 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 2,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Especificação | Valor |
|---|---|
Altura de Camada (mm) | 0,1 |
Tempo de Cura (seg)
| 3,0 |
Tempo de Aderência (seg)
| 20 |
Camadas de Transição
| 8 |
Intensidade de Luz (%)
| – |
Ajuste de Tamanho em X (%)
| 100
|
Ajuste de Tamanho em Y (%)
| 100
|
Compensação Externa (mm)
| 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 6,3 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Mars 2 PRO
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,2 |
Adhesion Time (sec) | 25
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Saturn 4 ultra
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,8 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
(EN) Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,1 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,7 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Saturn 3
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,8 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,1 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
External Compensation (mm) | 100
|
Compensação Externa (mm)
| 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,7 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Mars 4 Ultra
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,6 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,2 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Saturn 3 Ultra
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,8 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec) | 4,1 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,7 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Mars 5 Ultra
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec) | 4,3 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,1 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Saturn 2
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,6 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,2 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Elegoo Mars 3 Pro
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,6 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,2 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
W3D 2.0
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,2 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,2 |
Adhesion Time (sec) | 25
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 11,6 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
D160
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | 100
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,0 |
Adhesion Time (sec) | 25
|
Transition Layers | 8 |
Light Intensity (%) | 100 |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,2 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | 100 |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 11 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
AccuFab-CEL
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,0 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | 100 |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | 100 |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | 100 |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 10,1 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
