The Best Choice for
Permanent Restorations
Voxelprint Ceramic is a biocompatible, light-cured dental composite designed for single-unit prostheses on both teeth and implants.
With a high contente of inorganic fillers based on glass-ceramic materials, it offers exceptional mechanical strength along with esthetic versatility, providing a unique luster and outstanding optical properties.
Indications for Use
- Single-unit full crowns (anterior or posterior)
- Inlays, onlays, and veneers
- Crowns on prosthetic components;
- Artificial teeth for permanent restorations
Unmatched Shine
Achieve and maintain an exceptional shine with ease, thanks to its excellent polishing properties.
Easy to characterize with stains and pigments, providing a natural and esthetic appearance.
Color Stability
With the exclusive ISS (Intelligent Stability System), Voxelprint ensures outstanding rheological and color stability, preserving its original properties over time.
Voxelprint Ceramic maintains color stability throughout the curing process at different times (T0 = Immediate time / T10 = 10 min / T60 = 60 min / CAP – High-power curing chamber).

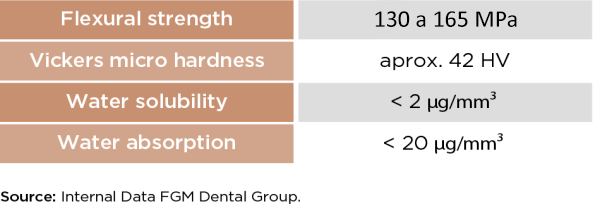

Product Details
Radiopacity and Fluorescence
Offers excellent radiopacity for easy control during radiographic exams, with fluorescence balanced to match natural teeth.
Sedimentation-Free*
Its rheological properties ensure the product remains homogeneous, even when left at rest in the printing equipment for extended periods.
*According to internal tests, minimal sedimentation occurs in the printing VAT even after long-term use.
Esthetic Versatility
The first 3D printing resin to offer three translucency levels for superior aesthetic performance, available in 11 colors.
Clinical Case
3D Voxelprint resin laminates – HT Bleach shade.
Case: Dr. Marcelo Giordani
The Highest Filler Content on the Market
Featuring a high concentration of inorganic fillers, uniformly and homogeneously distributed throughout the polymer matrix.
This perfect balance results in a composite with exceptional aesthetic and mechanical properties.
Microstructural Analysis
(Field emission scanning electron microscopy)
Source: Prof. Dr. Rodrigo Reis / Estácio de Sá University / Idomed – RJ
Source: Prof. Dr. Rodrigo Reis / Estácio de Sá University / Idomed – RJ
A New Standard in Esthetics, Strength, and Efficiency
Discover what the experts have to say:
“It looks like ceramic! This resin is superior to all others I’ve tested and used. I was already using printed resin for my posterior cases. Now, with HT resin (the only one on the market), we can use it in anterior aesthetic cases! People asked why I wasn’t using printed resin for esthetic laminates, and I said that the day a printed resin with the same optical behavior as ceramics was made, I would use it. That day has arrived!”
Prof. Dr. Marcelo Giordani
“Voxelprint Ceramic resin is extremely easy to print, emits no unpleasant odors, and remains stable in the printing VAT even after long periods of use. Its mechanical properties are exceptional, and polishing is simple, achievable in just a few steps.”
Prof. Dr. Raphael Monte Alto
VoxelPrint Printing Parameters
Select the Printer Brand
FlashForge Hunter
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec)
| 4,4 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | 100
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm)
| 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec)
| 4,6 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | 100
|
X Size Adjustment (%)
| 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | 100
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 10,1 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
dOne One
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,2 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%)
| – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,3 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,4 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 7,2 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
FlashForge Foto 8.9S
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 30 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5 |
Adhesion Time (sec) | 30 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,2 |
Adhesion Time (sec) | 30 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 11 |
Adhesion Time (sec)
| 40 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
FlashForge Foto 6.0
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 35 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4 |
Adhesion Time (sec) | 35 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,2 |
Adhesion Time (sec) | 35 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,9 |
Adhesion Time (sec)
| 45 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
FlashForge Focus 6K Ultra
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | – |
Adhesion Time (sec) | – |
Transition Layers | – |
Light Intensity (%) | – |
X Size Adjustment (%)
| – |
Y Size Adjustment (%) | – |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | – |
Adhesion Time (sec) | – |
Transition Layers | – |
Light Intensity (%) | – |
X Size Adjustment (%) | – |
Y Size Adjustment (%) | – |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Especificação | Valor |
|---|---|
Altura de Camada (mm) | 0,1 |
Tempo de Cura (seg)
| – |
Tempo de Aderência (seg)
| – |
Camadas de Transição
| – |
Intensidade de Luz (%)
| – |
Ajuste de Tamanho em X (%)
| – |
Ajuste de Tamanho em Y (%)
| – |
Compensação Externa (mm)
| 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon D2 - DLP
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,2 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,4 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | 100
|
X Size Adjustment (%)
| 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono 2
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec)
| 5,0 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,2 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%)
| – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 11,6 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,0 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,2 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 11,6 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono 4K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,0 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono S
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,4 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 6,0 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 12,7 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono SE
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 6
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,4 |
Adhesion Time (sec) | 25
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,9 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 12,5 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
M7 Pro
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,3 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,9 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono M5s
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,9 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 10,3 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Photon Mono X 6K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,3 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 8
|
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,9 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Sonic Mini 8K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec)
| 4,2 |
Adhesion Time (sec) | 25
|
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 63 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Sonic 4K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,7 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,9 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 6 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Sonic Mini 2K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100 |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | – |
Adhesion Time (sec) | –
|
Transition Layers | – |
Light Intensity (%) | – |
X Size Adjustment (%) | –
|
Y Size Adjustment (%) | –
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,7 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,9 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 6 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Sonic Mini 4K
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100 |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | – |
Adhesion Time (sec) | –
|
Transition Layers | – |
Light Intensity (%) | – |
X Size Adjustment (%) | –
|
Y Size Adjustment (%) | –
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,7 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 939 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 6 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Sonic Mini 8KS
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,0 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100 |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,2 |
Adhesion Time (sec) | 25
|
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100 |
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 6 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100 |
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 6 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Halot
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 25
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%)
| 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,4 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
lab LD002H
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,3 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,5 |
Adhesion Time (sec) | 25
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Especificação | Valor |
|---|---|
Altura de Camada (mm) | 0,1 |
Tempo de Cura (seg)
| 3,6 |
Tempo de Aderência (seg)
| 25 |
Camadas de Transição
| 8 |
Intensidade de Luz (%)
| – |
Ajuste de Tamanho em X (%)
| 100
|
Ajuste de Tamanho em Y (%)
| 100
|
Compensação Externa (mm)
| 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 7,6 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Halot Mage Pro
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 2,0 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 2,5 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Especificação | Valor |
|---|---|
Altura de Camada (mm) | 0,1 |
Tempo de Cura (seg)
| 3,2 |
Tempo de Aderência (seg)
| 20 |
Camadas de Transição
| 8 |
Intensidade de Luz (%)
| – |
Ajuste de Tamanho em X (%)
| 100
|
Ajuste de Tamanho em Y (%)
| 100
|
Compensação Externa (mm)
| 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 6,8 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Halot mage s 14k
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 2,0 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 2,5 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Especificação | Valor |
|---|---|
Altura de Camada (mm) | 0,1 |
Tempo de Cura (seg)
| 3,0 |
Tempo de Aderência (seg)
| 20 |
Camadas de Transição
| 8 |
Intensidade de Luz (%)
| – |
Ajuste de Tamanho em X (%)
| 100
|
Ajuste de Tamanho em Y (%)
| 100
|
Compensação Externa (mm)
| 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 6,3 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Mars 2 PRO
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,2 |
Adhesion Time (sec) | 25
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,5 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Saturn 4 ultra
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,8 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
(EN) Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,1 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,7 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Saturn 3
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,8 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,1 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
External Compensation (mm) | 100
|
Compensação Externa (mm)
| 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,7 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Mars 4 Ultra
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,6 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,2 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Saturn 3 Ultra
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,8 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec) | 4,1 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,7 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Mars 5 Ultra
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec) | 4,3 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 9,1 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Saturn 2
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,6 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,2 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Elegoo Mars 3 Pro
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,6 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 3,7 |
Adhesion Time (sec) | 20
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec) | 3,9 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 8,2 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
W3D 2.0
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,2 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | –
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,2 |
Adhesion Time (sec) | 25
|
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,5 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | – |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 11,6 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
D160
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | 100
|
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,0 |
Adhesion Time (sec) | 25
|
Transition Layers | 8 |
Light Intensity (%) | 100 |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 5,2 |
Adhesion Time (sec) | 25 |
Transition Layers | 8 |
Light Intensity (%) | 100 |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 11 |
Adhesion Time (sec)
| 35 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
AccuFab-CEL
VoxelPrint Ceramic - HT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,0 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | 100 |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - MT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,5 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | 100 |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Ceramic - LT
Specification | Value |
|---|---|
Layer Height (mm) | 0,1 |
Curing Time (sec) | 4,8 |
Adhesion Time (sec) | 20 |
Transition Layers | 8 |
Light Intensity (%) | 100 |
X Size Adjustment (%) | 100
|
Y Size Adjustment (%) | 100
|
External Compensation (mm) | 0,00
|
VoxelPrint Splint Tough
Specification | Value |
|---|---|
Layer Height (mm)
| 0,1 |
Curing Time (sec)
| 10,1 |
Adhesion Time (sec)
| 30 |
Transition Layers
| 8 |
Light Intensity (%)
| 100,5
|
X Size Adjustment (%)
| 100,5 |
Y Size Adjustment (%)
| 100,5
|
Post-processing instructions
Whenever handling resin or working on equipment in areas contaminated by uncured printing materials, wear safety goggles, a mask, and properly sized powder-free nitrile gloves.
- After the printing process is complete, disconnect the print bed from the printer, following the equipment manufacturer's instructions.
- Using a metal spatula, remove the printed part from the build plate;
- Carefully remove the printing supports from the printed part manually. Do not apply excessive force to the printed object—too much force may damage the part during this step. Supports that are harder to remove can be cut using a small cutting plier. Do not worry if small remaining support marks are left; these can be removed during the finishing process.
VoxelPrint Ceramic can be properly cleaned using any of the methods described below:
Step 1:
Using a paper towel, remove uncured material from the surface of the printed part. With a cloth soaked in ethanol (>90%), clean the printed part, completely removing uncured resin. It is recommended to use a soft-bristle plastic brush to assist in this removal, as well as a micro applicator to clean hard-to-reach areas such as holes and cavities with sharp corners. In this method, avoid leaving the part in contact with alcohol for more than 1 minute; when wiping with the cloth, immediately remove areas visibly wet with alcohol.
Step 2:
With a paper towel, remove uncured material from the surface of the printed part. After this step, immerse the printed part in an agitator containing 40% alcohol, which can be a mechanical agitator or an ultrasonic cleaning device, for up to 3 minutes. Household alcohol is not recommended, as it may contain other chemical compounds unsuitable for use. Therefore, it is recommended to manually dilute from 92%, 96%, or 70% alcohol.
Step 3:
Using a paper towel, remove uncured material from the surface of the printed part. After removing the excess, use a steam generator (steamer type, with high-pressure steam) to apply high-pressure steam to the part, completely removing uncured material. Air pressure will also assist in this removal.
Note: due to its high glass-ceramic content, when immersed for a certain time in ethanol or isopropyl alcohol, printed parts develop a whitish matte surface finish, which can only be removed during the polishing stage or by sandblasting. Immersion in these high-concentration solvents may impact the product’s mechanical properties. Therefore, perform cleaning using one of the three methods described above.
To achieve the desired mechanical properties and biocompatibility, VoxelPrint Ceramic must undergo a post-curing process in a UV light system with appropriate intensity and time.
- After cleaning and drying, allow the printed part to rest for at least 10 minutes to ensure it is free of alcohol residues.
Each curing device has different intensity and wavelength characteristics. These factors directly affect curing time and the final properties of the material.
Below is a list of validated equipment and curing parameters:
Brand | Model | Curing Time | Notes |
|---|---|---|---|
Anycubic | Anycubic Wash & Cure | 30 minutes | – |
Anycubic | Anycubic Wash & Cure 2 | 30 minutes | – |
Anycubic | Anycubic Wash & Cure 3 | 30 minutes | – |
Elegoo | Mercury Plus (V1 a V3) | 30 minutes | – |
Elegoo | Mercury X Bundle | 30 minutes | – |
Creality | Wash and cure UW-01 | 30 minutes | – |
Creality | Wash and cure UW-02 | 30 minutes | – |
Creality | Wash and cure UW-03 | 30 minutes | – |
Pionext | UV-02 curing machine | 10 minutes | All wavelengths activated (365, 385, and 405 nm) |
Done 3D | Ciclone | 30 minutes | – |
Phrozen | Phrozen Cure V2 | 30 minutes | – |
